Skeletal and Body Region Terms to Know
BI 231 Alverno College 2010
|
|
Line drawings from The Sourcebook of Medical Illustration (The Parthenon Publishing Group, P. Cull, ed., 1989). Retrieved April 5, 2008 from Jensen, M., 2007. Webanatomy Image Bank at http://msjensen.cehd.umn.edu/webanatomy. Photographs taken for Alverno College by Brian Scott and Dave Rogers.
If you just print this out, you'll miss some of its function. As you review it online, you can click on some parts of the anatomy and they will be identified for you. |
Bones
and skeletal terms
|
Head |
Leg |
Frontal
Parietal
Temporal
Mastoid process
Occipital
(occiput)
Zygomatic
arch
Maxilla
Mandible
Temporomandibular joint
Nasal |
Foramen magnum
Orbit
Palatine - hard palate
Sphenoid
Ethmoid
Lachrymal or lacrimal
Nasal
septum |
Ilium
Iliac
crest
Iliac spine
Ischium
Pubis
Pubic
symphysis
acetabulum
Sacrum
Femur
Tibiofemoral joint
Femoral condyles (medial and lateral)
head of femur
neck of femur
Tibia
Medial
malleolus
Fibula
Lateral malleolus
|
Patella
Prepatellar bursa
Suprapatellar bursa
Menisci (medial and lateral)
Collateral ligaments (medial and lateral)
Metatarsals
Metatarsophalangeal joints
Tarsals
Calcaneum
|
Chest |
Back |
Arm |
True
ribs
False
ribs
Costal
cartilages
Sternum
Manubrium
Xiphoid
process
Substernal
Suprasternal
Angle of
Louis (sternal angle)
Intercostal
space
|
Atlas
Axis
Cervical
vertebrae
Thoracic
vertebrae
Lumbar
vertebrae
Sacral
vertebrae
Coccyx
Spinous processes
Thoracic Curve
Lumbar curve
|
Scapula
Acromion of scapula
Coracoid process of scapula
Subacromial bursa
Acromioclavicular joint
Clavicle
Midclavicular
humerus
Greater tubercle of humerus
Epicondyles of humerus (medial and lateral)
|
radius
Styloid process of radius
ulna
Olecranon process of ulna
Olecranon bursa
Lateral and medial grooves of elbow joint
carpals
metacarpals
Metacarpophalangeal joints
phalanges
Interphalangeal joints
|
|
|
female pubis (labeled) and male pubis (for comparison)
Can you tell what sex our skeletons are?
|
|
|

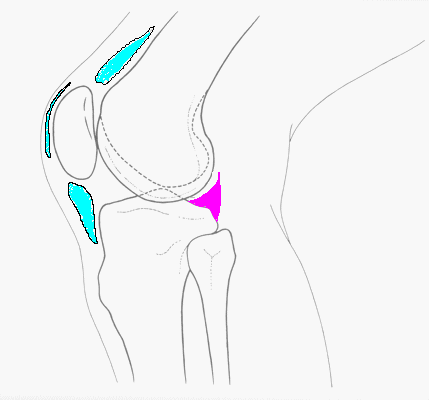

magenta indicates menisci, the cartilage 'cups' that form a socket for the lower end of the femur to sit in.
yellow indicates collateral ligaments that hold the joint together.
knee - is this a lateral or medial view?
bursae are fluid-filled sacs that help cushion the joints |
|
|
elbow joint - which view is anterior? which is posterior? |
Descriptive
terms
Anterior
Posterior
Inferior
Superior
Proximal
Distal
Medial
Lateral
|
Torso
Regions
Cervical Midclavicular
Axillary Midsternal
Thoracic Midaxillary
Abdominal Anterior axillary
Hypogastric Vertebral
Epigastric Scapular
Umbilical Abdominal quadrants
Lumbar
Iliac
Pubic
Pelvic
Gluteal
Buttocks
|
Arm Regions
Scapular
Axillary
Brachial
Cubital
Antecubital
fossa
|
Leg Regions
Pubic
Iliac
Femoral
Popliteal
Calf
Dorsum
of foot
|
Body
Cavities
Cranial Pleural
Spinal Pericardial
Thoracic Peritoneal
Abdominopelvic
|
Sublingual
|
|
|
Vocabulary Activity TO TURN IN: use the word roots below to define the following |
Mid- = in the middle of
Antero- = anterior to
Postero-= posterior to
Retro- = posterior to
Dorsi- = in a dorsal direction
Ventri- = in a ventral direction |
-medial = toward the midline
-lateral = toward the side
-superior = above
-inferior = below
Dorsum – dorsal surface of
Peri- = around |
Dorsum of the foot = _____________________________________________________
Anterolateral = ______________________________________________________
Midoccipital = __________________________________________________
_________________________________________ = in the middle of the carpal bones
Midtarsal = ______________________________________________________
______________________________________ = in the middle of the scapula
Retromandibular = _________________________________________
Behind the pharynx = _______________________________________
Perioral = ________________________________________________
__________________________________________ = around the eye
__________________________________________ = around the orbit
__________________________________________ = around a nerve
___________________________________________ = around the heart
Perigastric = __________________________________________________
Peridental = ____________________________________________________
Moving from back to front = _________________________________________
Moving from front to back = _________________________________________
Posteroinferior = _________________________________________________
At the back of the parietal bone = ___________________________________
Toward the back and toward the midline of the body = ______________________
Toward the back and toward the side of the body = __________________________
Retropericardial = _____________________________________________
|
|
|
|
